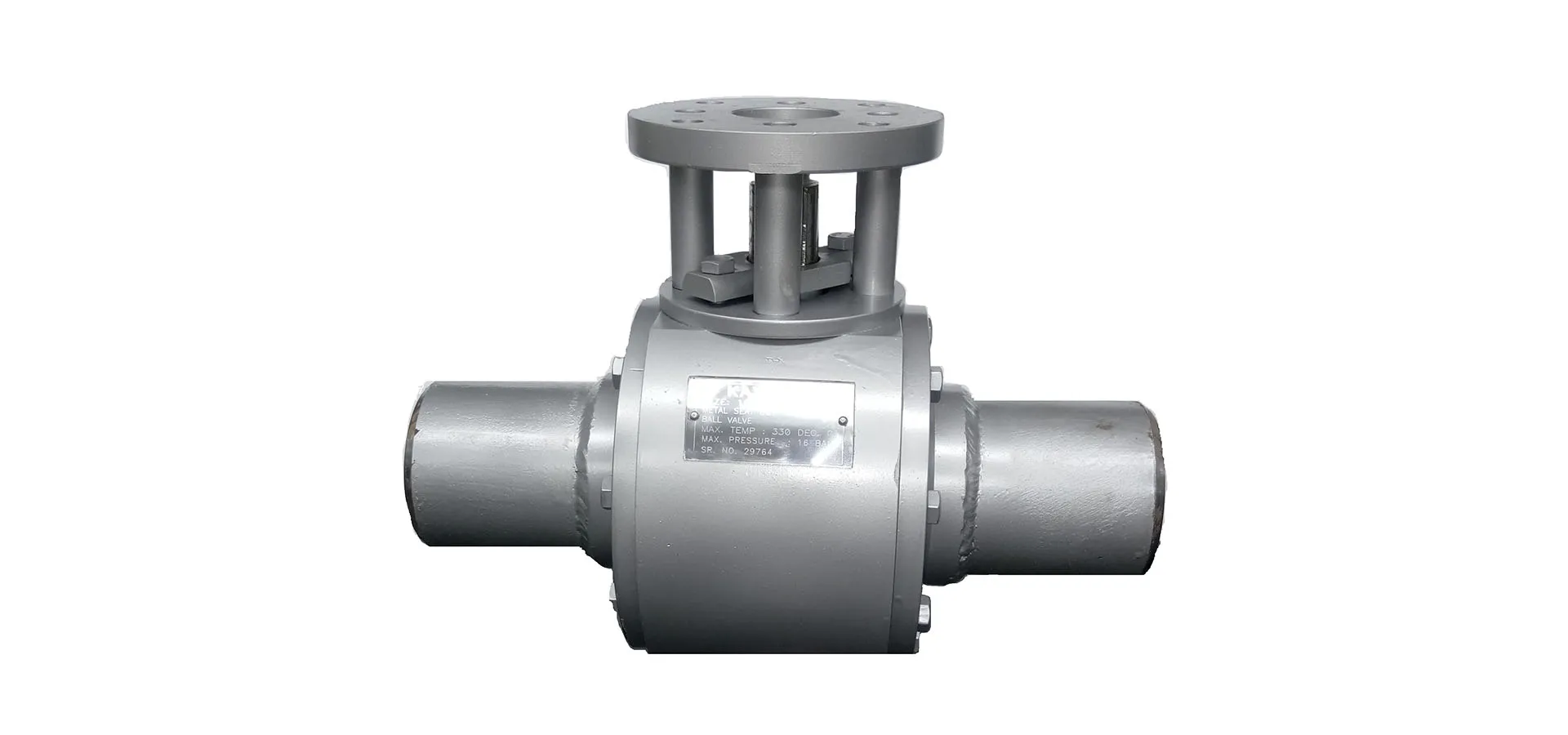

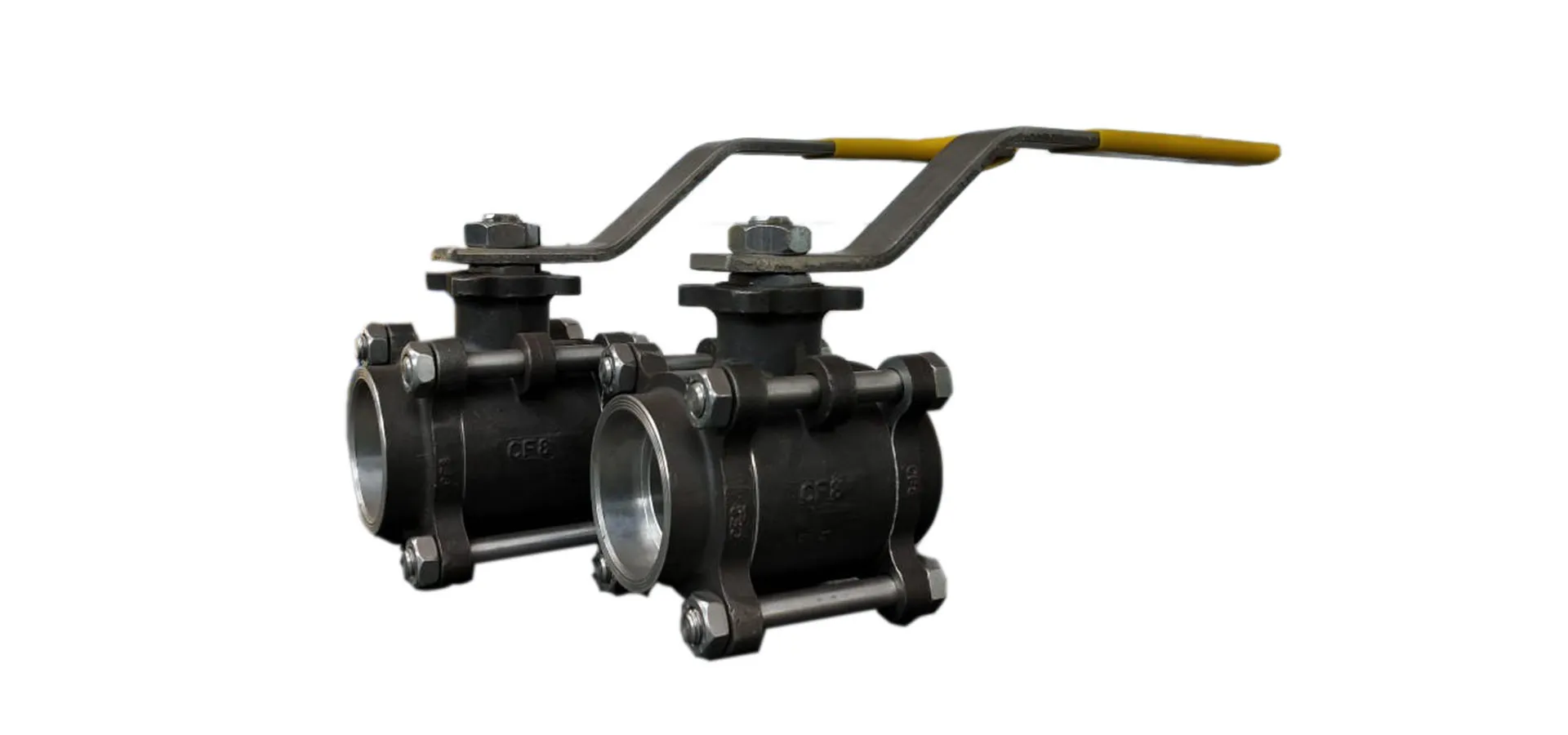

Kavaata Socket Weld End Investment Cast Ball Valves are designed and manufactured as per BS 5351/ ISO17292 or API 6D standards. The materials of construction generally offered are ASTM A216 Gr WCB (CS), ASTM A351 Gr CF8 (SS304) and ASTM A351 Gr CF8M (SS316).
.webp)
| Design standard: ISO17292/ BS5351 |
| Testing standard: BS6755/ API598 |
| Pressure-Temperature rating: ASME B-16.34 |
| Size | ½” to 3” |
| Class | 150#, 300#, 600# |
| Material | WCB, CF8M(SS316), CF8(SS304), Duplex Stainless Steel, Inconel, Hastelloy |
| Port | Full Port, Reduced Port |
| End connection | Socket Weld End, Butt Weld End |
| Operation | Manual/ Actuator |
| Low Torque | Economical and low maintenance |
| Low pressure drop | Long working life |
| Wetted areas fully machined | Compact design, Investment cast |
| Floating type Ball Valve | Actuator pad arrangement on request |
| Fine finished stem in the packing area for better gland life | |
