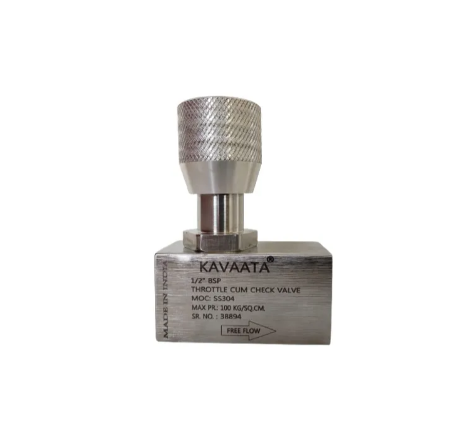

Throttle Cum Check Valve
Kavaata Socket Weld End Investment Cast Ball Valves are designed and manufactured as per BS 5351/ ISO17292 or API 6D standards. The materials of construction generally offered are ASTM A216 Gr WCB (CS), ASTM A351 Gr CF8 (SS304) and ASTM A351 Gr CF8M (SS316).
Application Standards
| Throttle Check valves are used where volume flows have to be infinitely controlled in one direction while allowing for free flow in the reverse direction. A typical use is the speed control of cylinder or other actuators. The free flow control allows for meter-in or meter-out actuator control. |
| WORKING PRESSURE: 100 Kg/ Sq. cm |
Product Specification
| Valve Body | SS304/ MS |
| Stem Body | SS304/ MS |
| Stem | SS304/ MS |
| Knob | Aluminium |
| Stopper | SS304/ MS |
| Spring | SS304/ Spring Steel |
| Tightening Piece | S304/ MS |
| O- RING | Buna-N |
| Grub Screw | CS |
| Seal | RPTFE |
