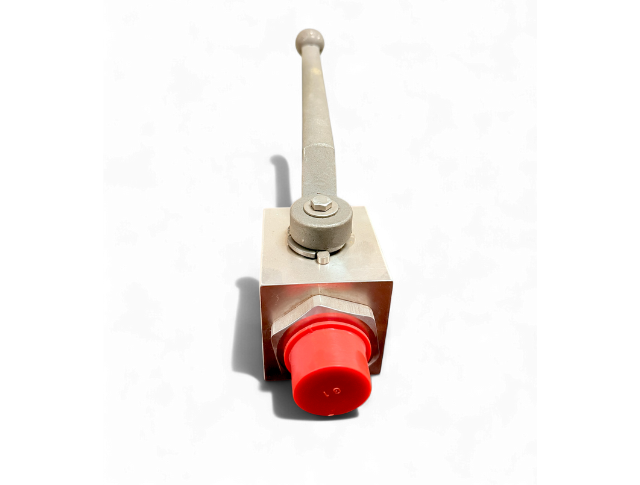

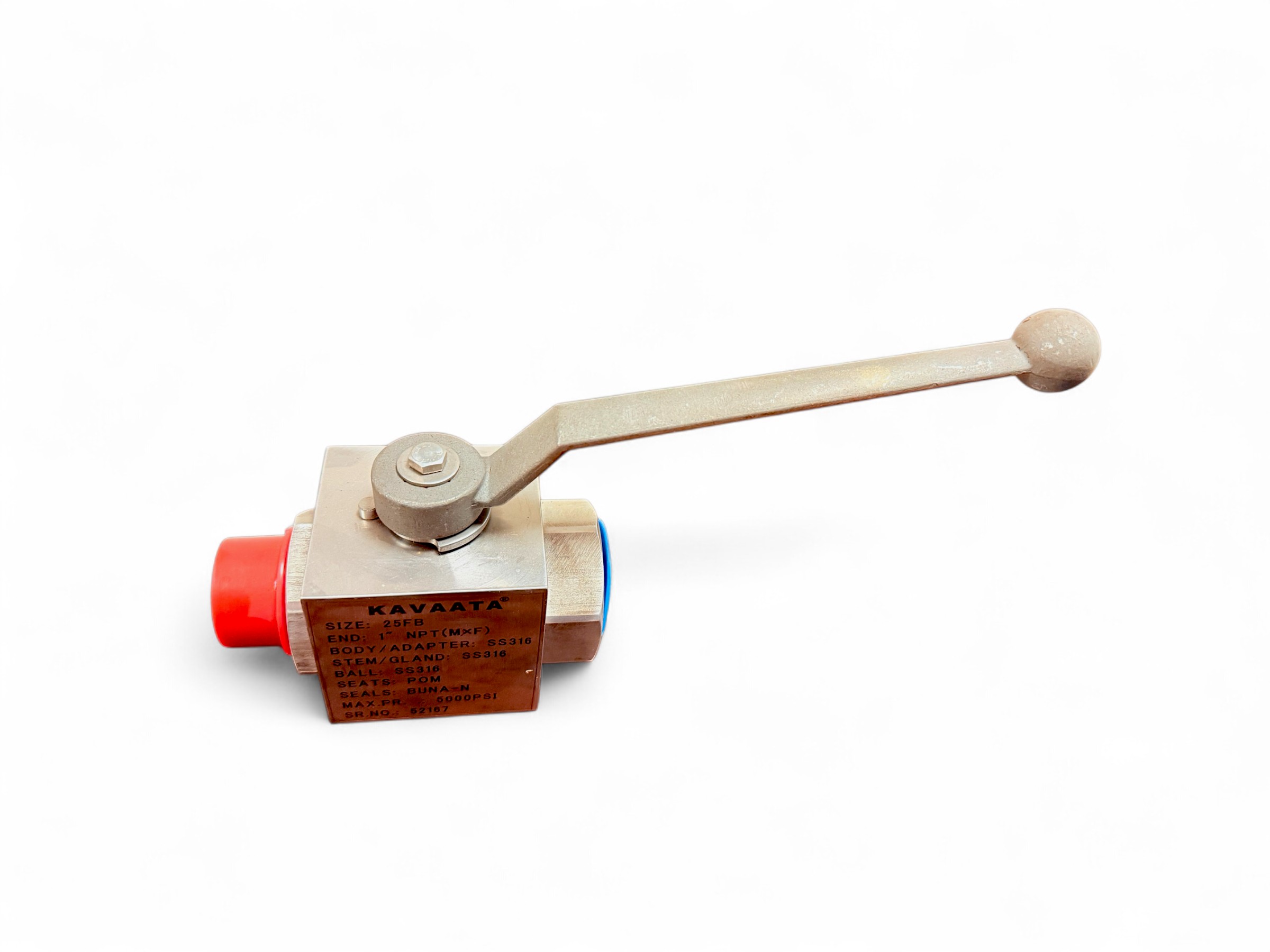

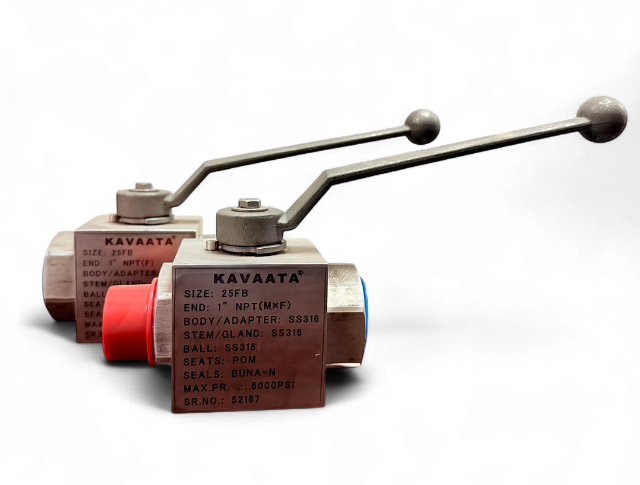

Lines operating under high pressure, typically around 300 bar, require high pressure ball valves for ON/OFF application. These valves are specially designed to withstand continuous use under these severe conditions. The Material of Construction is CS and Stainless Steel. These type valves can be supplied in round and square body.
.png)
| Design standard: ISO17292/ API 6D |
| Testing standard: BS6755/ API598 |
| Pressure-Temperature rating: ASME B-16.34 |

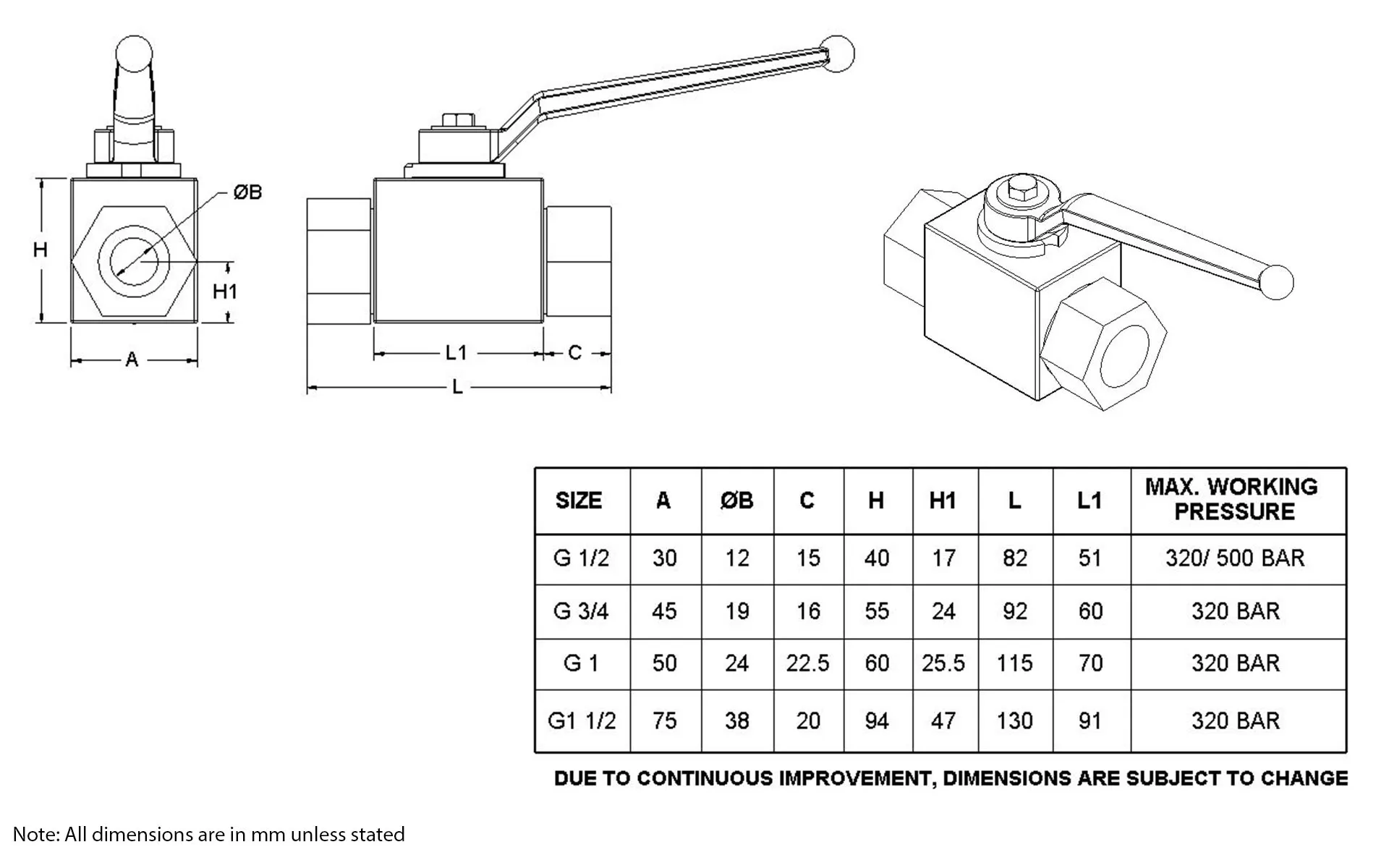

| Size | ½” to 1½” |
| Working Pressure | 320 Bar |
| Testing Pressure | 450 Bar |
| Material | Stainless Steel, MS |
| Temperature | 80 Deg. C max. |
| Port | Full Port, Reduced port |
| End connection | Screwed End BSP/ NPT |
| Operation | Manual/ Actuator |
| Actuator pad arrangement on request | Floating type Ball Valve |
| Long working life | High integrity Bar stock body |
| 100% factory tested | Spares are easily available and interchangeable |
| Available with POM seats for high pressure 350 bar 90 deg C max applications and PEEK seats for high pressure and higher temperature applications | |
Advantages: Economically priced
