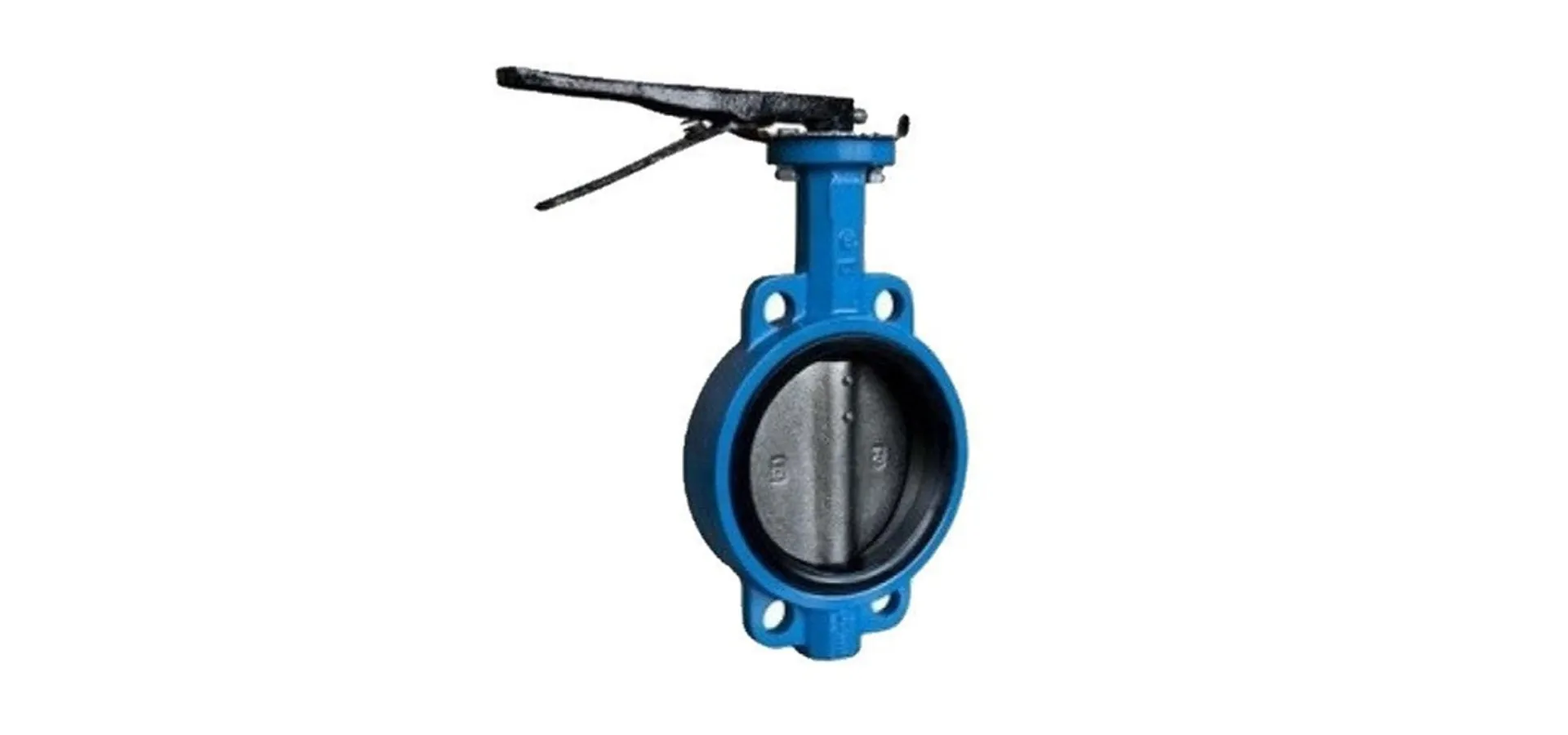

Wafer Type Butterfly Valve
A butterfly valve is a type of flow control device used to regulate or isolate fluid flow in pipelines. It consists of a circular disc or plate (the "butterfly") mounted on a rotating shaft. When the valve is fully closed, the disc blocks the passageway entirely; when fully open, the disc is rotated a quarter turn (90 degrees) to allow fluid to pass through almost unrestricted.
Product Specifications
| Body | CI, WCB, CF8, CF8M |
| Disc | CI, SG IRON, CF8, CF8M |
| Seat | Nitrile / EPDM / Viton / Silicon / Hypalon Handle: Sheet metal |
Applicable Standards
| Design standard: As per IS 13095, BS 5155, API 609 |
| Testing standard: As per API 598, ISO 5208 |
| Available in Gear, Pneumatic & Electric actuation |
| Actuator Ready Series for on-site actuation |
| Low Torque |
| Aesthetic looks |
