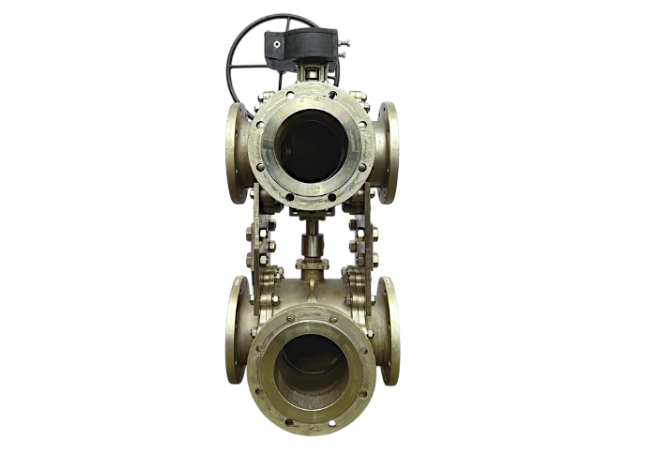

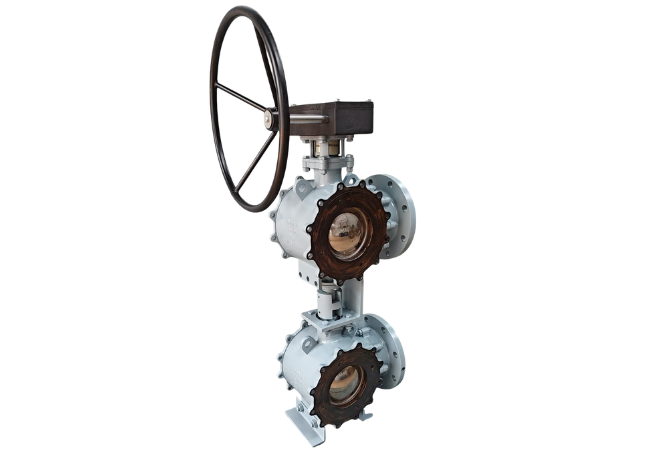

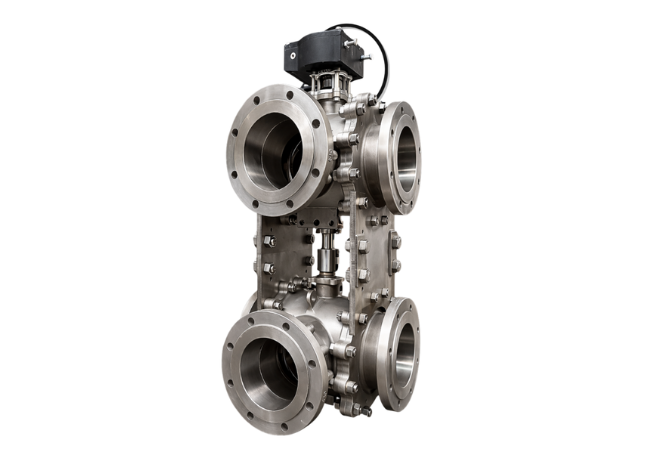

6 Way Ball Valve is designed for Duplex Filters to achieve smooth changeover between the filters. This valve is basically an assembly of two 3-way valves fitted on top of each other and operated by a handle or a gear placed on top. The two valves are operated simultaneously and are interconnected by a coupling between them. These valves are sturdy and compact in design and are used where space is a constraint.

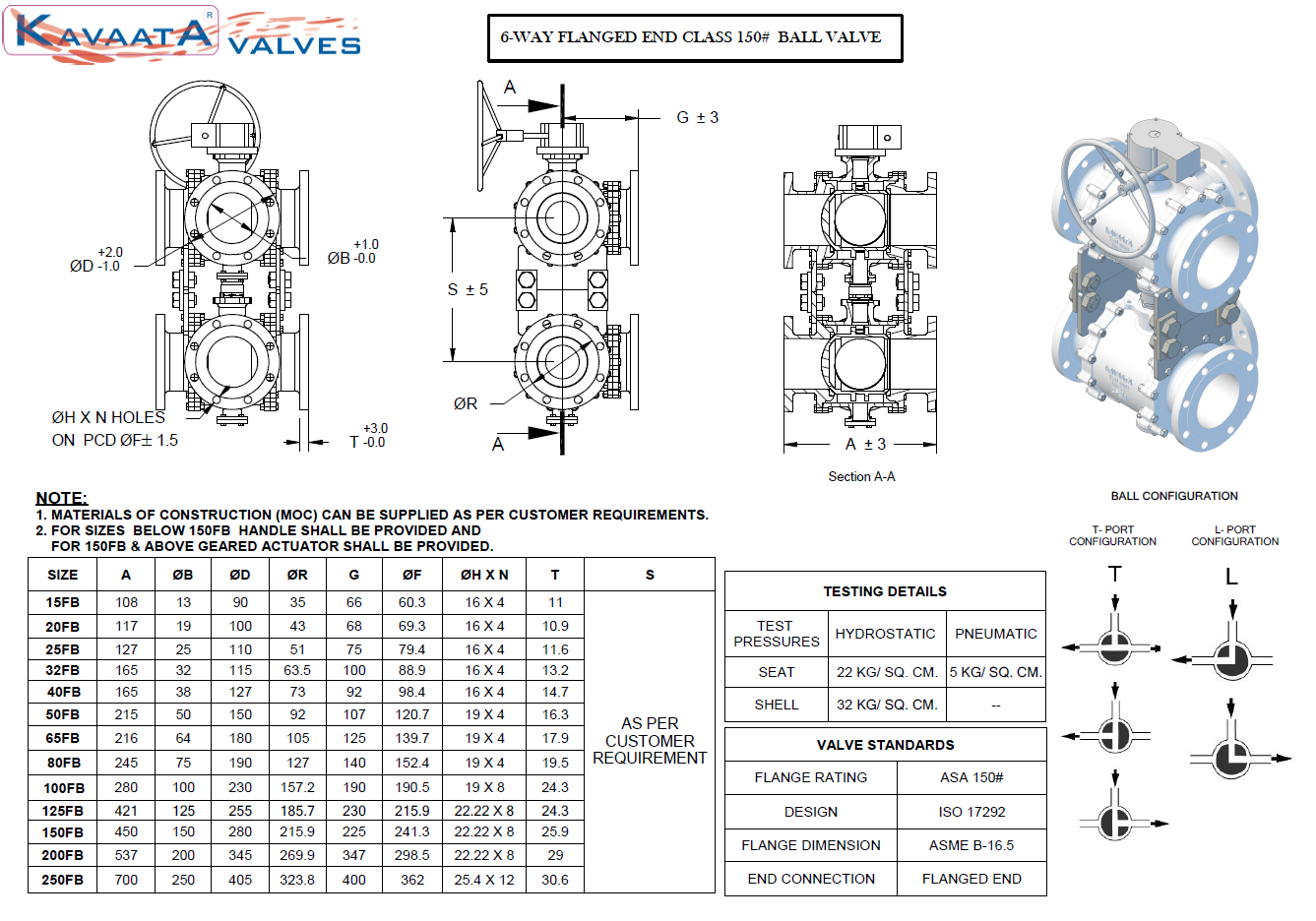

| Flange Rating | ASA 150# |
| Design | ISO 17292 |
| Flange Dimension | ASME B-16.5 |
| End Connection | Flanged End |
| Size | 1-1/2" - 10" (DN40- DN250) |
| Class | 150#, 300#, PN10, PN16 |
| Material | WCB, CF8M (SS316), CF8(SS304), Duplex SS, Inconel, Hastelloy |
| Port | Full Port |
| End connection | Flanged End (ANSI / DIN) |
| Operation | Manual (Lever) / Actuated (Gear / Pneumatic / Electrical) |
| Configuration | L-Port / T-Port |
| Designed for duplex filter and duplex heat exchanger | Easy to operate |
| Smooth changeover between filters | Low maintenance cost |
| Available with rigid coupling | Available in L-port and T-port configurations |
| Zero leakage | Easy Installation and Operation |
