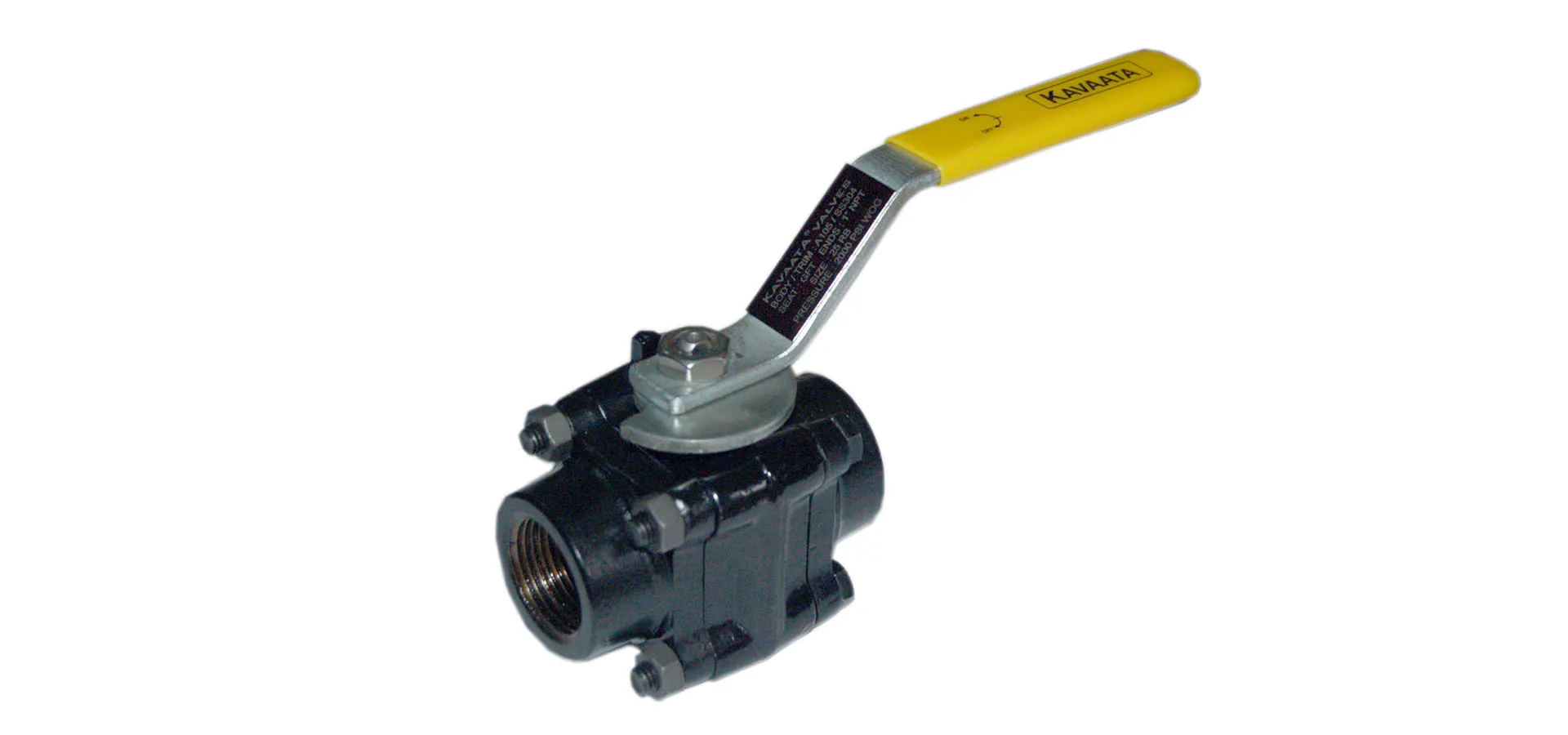

3 Piece Forged Steel Ball Valve
The Forged Steel Ball Valves are rugged in construction and are designed as per BS 5351 (ISO 17292) standards. The material of construction offered is ASTM A105 Forged Steel. The trims can be supplied in SS304 or in SS316.
Applicable Standards
| Design standard: ISO17292/ API 6D |
| Testing standard: BS6755/ API598 |
| Pressure-Temperature rating: ASME B-16.34 |
| End Connections: ASME B-16.11 |
Product Specification
| Size | ½” to 2” |
| Class | 800# |
| Material | ASTM A-105 |
| Port | Reduced port |
| End connection | Screwed End, Socket Weld End, |
| Operation | Manual/ Actuated |
