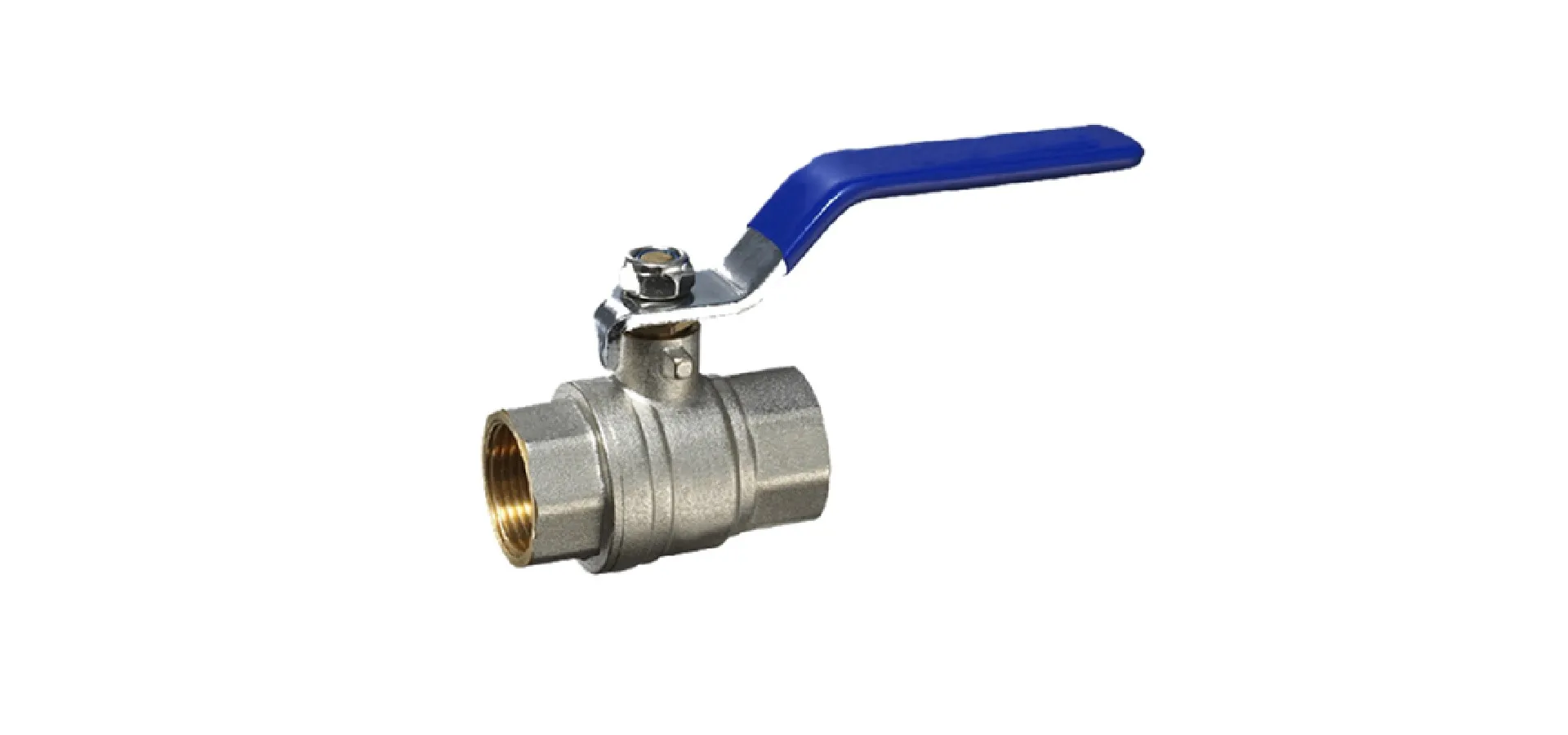

Brass Forged Ball Valve

Brass Forged Ball Valve

KAVAATA valves are compact, heavy-duty, simple, and cost-effective. ® KAVAATA spring check valves work automatically to keep water flowing in one direction and prevents any reverse flow in a water piping system. The force of flow, in the correct direction, opens the valve whilst backflow forces the valve to close.

KAVAATA brass spring check valves are manufactured by KAVAATA VALVES. These valves are designed and developed according to international standards BS 5154. The valve design is capable of achieving minimum loss of pressure.

KAVAATA VALVES ARE SAFE FOR DRINKING WATER APPLICATIONS.

Installation: KAVAATA check valves can be installed in any position- Vertical / Horizontal.

Download Catalogue

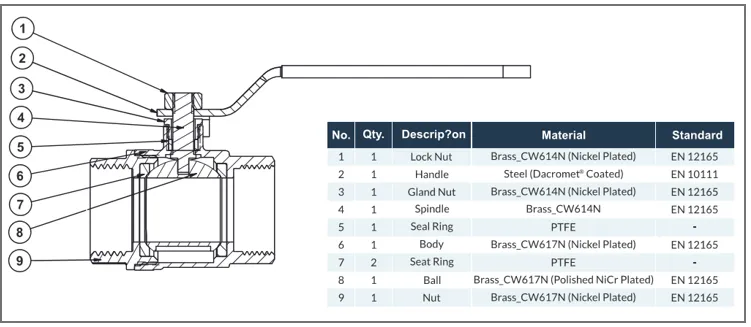

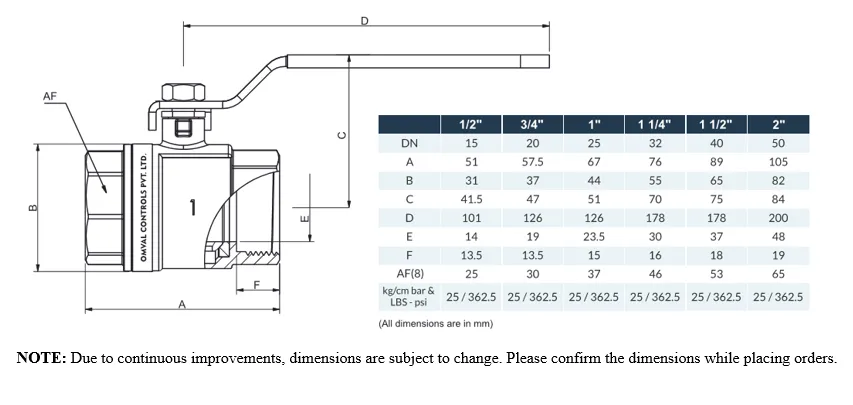

Product Specification

Material- Full brass forged body. (Nickel plated)
Seat ring- Virgin PTFE. (Teflon)
Lever- Dacromet coated steel handle. (Rust proof)
Spindle- Blow out proof
Ball- Super finish chrome plated.
End threads- BSP to ISO 228 at both ends.
Working temp:-20 to 180 °C
Pressure range: 25 bar (at 60 °C)
Material grade, size & pressure range permanently roll marked on the surface.
Dust and thread protection cap.

Advantages

KAVAATA valves are designed such that there is no leakage even at low pressure.
KAVAATA valves are manufactured from low lead content brass (CW 617N) and are safe for drinking water and health.
WCB, CF8M(SS316), CF8(SS304), Duplex SS, Inconel, Hastelloy
KAVAATA valves are easy to fit and replace with standard pipe thread.
Screwed End, Socket Weld End
Manual/ Actuator
